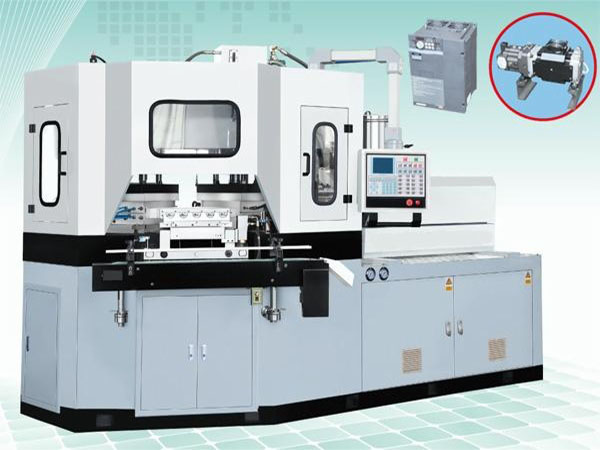

SERVO Injection Blow Moulding Machine-GT45S
Send Inquiry


njection Blow Molding Machine (Model: GT45S)
Characteristics
Adopt electro-hydraulic hybrid servo system can save 40% power than usual.
Apply the double vertical pole and single horizontal beam to make enough rotation space, longer bottles, make the mold installation easy and simple.

NOModel: GT45SUnitData
1Dia.of screwmm45
2Screw L/D 24
3Shot volumecm3325
4Injection weightg250
5Injection pressureMpa167
6Max.screw strokemm210
7Max.screw speedrpm10-235
8Heating capacityKw8.5
9No.of heating zoneQty3
10Clamping blowing system
11Clamping force of injectionKN400
12Clamping force of blowingKN150
13Opening stroke of mold platenmm120
14Lifign height of rotary tablemm60
15Max.platen size(L×W)mm580×390
16Min.mould thicknessmm240
17Heating capacity of mouldKw2.5
18Stripping system
19Stripping strokemm210
20Driving system
21Motor powerKw20
22Hydraulic pressureMpa14
23Product range
24Suitable bottle rangeL0.015~0.8
25Max.bottle heightmm≤200
26Max.dia.of bottlemm≤100
27Other
28Dry cycles4.5
29Min.air pressureMpa1.2
30Discharge rate of compressed airm3/min>0.8
31Water flowagem3/h3.5
32Total rated power with mould heatingKw30
33Dimension(L×W×H)mm3800×1600×2230
34Net weightT7.5

Materials:Suitable for majority kind of thermoplastic resins such as HDPE,LDPE,PP,PS,EVA and so on.
Cavity number of one mould corresponding to product volume.(For reference)

Product Volume15ml20 ml40 ml60 ml100 ml120 ml200 ml
Cavity quantity10cavity9 cavity7 cavity6 cavity6 cavity5 cavity5 cavity
