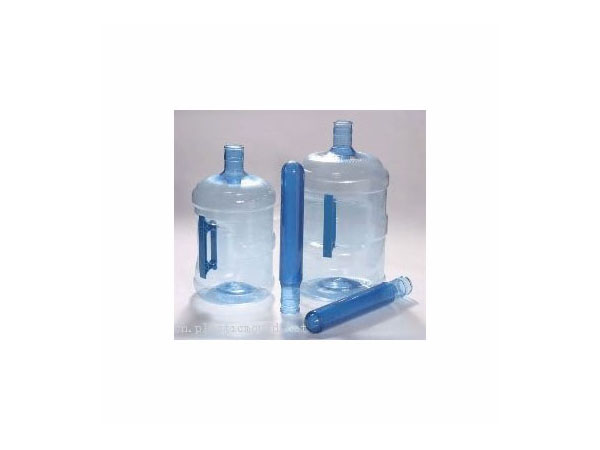

5gallon PET bottle blowing machine
Send Inquiry


5gallon bottle blowing machine,Manual PET Preform Feeding Blow Molding Machine, Manual Plastic bottle blowing machine, Manual PET bottle blowing machine,Manual PET bottle blow moulding machine,Manual PET stretch blowing machine,Manual Automatic PET bottle blowing machine, Manual PET bottle blow molding machine, Manual PET stretch blow molding machine,20L blowing machine

Items

General Information

JG-1C20L

Container

Theoretical Output

180pcs/hr

Max.container volume

20L

Max.neck diameter

100mm

Max.container diameter

300

Max.container height

450mm

Number of cavity

1cavity

Electrical System

Total power

25kw

Use Power

15kw

Air System

Working Pressure

1.0Map

Low Pressure Consuming

1400L/min

Blow Pressure

≤3.5Mpa

High Pressure Consuming

1200L/min

Chiller Water

Operating Pressure

0.3-0.5 Mpa

Temperature

10-12 ℃

Flow Rate

30L/min

Machine Data

Machine Dimension

2.5×1.5×2.0m

Machine Weight

1900kg

1、High safety. High speed with high efficiency.
2、Manual saving, one man is enough for operation the machine.
3、Stable performing with easy maintaining.
4、Imported PLC controller and man-machine interface computer.
5、Japan Omron inspection sensor.
6、Adopt the new type double bend arm and four pull rod-clamping structure(won the patent):Cross direction; Middle mould board is move parallel; The distance between two mold board is adjusted by the chain wheel.Thus,the clamping force is very strong. Power saving design that can increase your profits.
7、Segregate type air controlling system, which is designed for avoiding waste pollution.
