PET Preform Injection Molding Machine
Send Inquiry

Standard Features：
With deep experience and in accordance with PET preform characteristics, we have improve a lot to be fit for PET preform production
1.Professional PET screw and barrel with L/D 1:23 have higher mixing and plasticizing abilities. High torque screw driving system ensures screw’s injection speed
2.Big channels for cooling water regulating meet requirements for mold cooling.
3.Large eject force ensures multi cavity PET performs to be taken out efficiently.

UnitD250-PET
ITEMSPET Special Injection rigid screw
INECTION  UNITScrew Diametermm55
Screw L/D RatioL/D24.0
Injection Weightg640
Injection PressureMPa185.1
Injection Rate into Aircm3/s236.3271.0
Injection Strokemm253
Injection Speedcm/s9.5/11.6
Screw Speedrpm189 /232
CLAMPING  UNITClamping ForceKN2500
Clamping Strokemm550
Space Between Tie Barmm580*580
Max. Mold Heightmm600
Min. Mold Heightmm250
Eject Strokemm160
Eject ForceKN67
No. Of Ejector Pinspiece9
OTHERSMax. Pump PressureMPa17.5
Pump Motor PowerKW22.0
Heater PowerKW17.1
Hopper CapacityKg50
Oil Tank CapacityL550
WeightT8.2

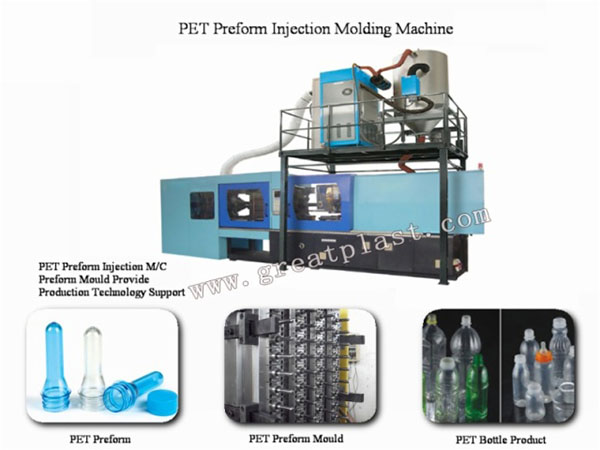

PET preform Injection Molding Machine

Standard Features：
With deep experience and in accordance with PET preform characteristics, we have improve a lot to be fit for PET preform production
1.Professional PET screw and barrel with L/D 1:23 have higher mixing and plasticizing abilities. High torque screw driving system ensures screw’s injection speed
2.Big channels for cooling water regulating meet requirements for mold cooling.
3.Large eject force ensures multi cavity PET performs to be taken out efficiently.
4.PID controlled barrel with exact temperature
5.We supply all PET preform and bottle production “Turn-Key” solution
