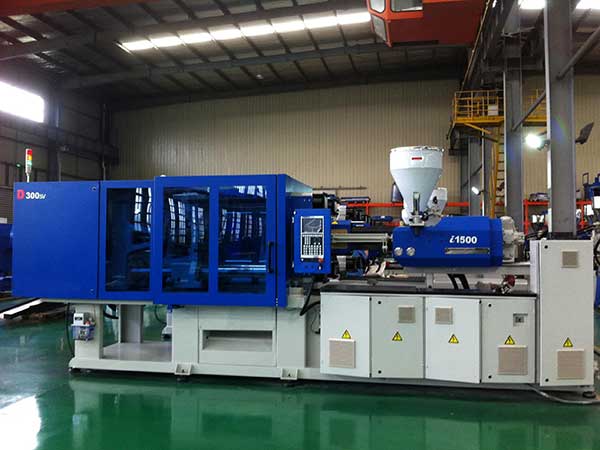

Precise and energy injection molding machine D300S
Send Inquiry


Servo motor injection machine was most good at injection thermoplastic plastic material, such as PP (Polypropylene), PE (Polyethylene)
Our machine has bigger tie bar space and shot weight capacity, it is enough capacity to produce your demand all kind of plastic product

  Unit D300S
ITEMS A B C

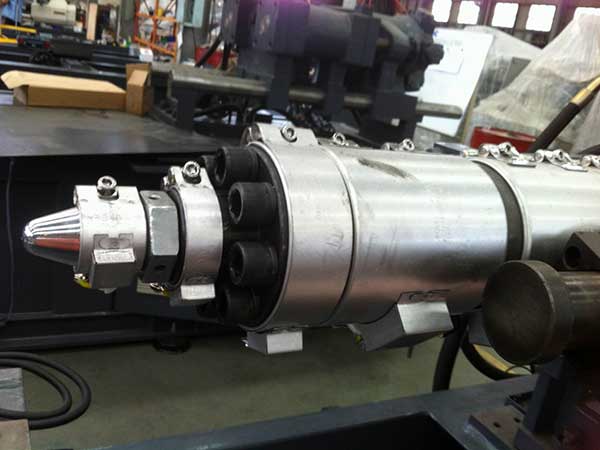

INECTION  UNIT Screw Diameter mm 55 60 65
Screw L/D Ratio L/D 21.8 20.0 18.5
Shot Size(Theoretical) cm3 656 780 916
Injection Weight g 597 710 833
Injection Pressure MPa 229.1 192.5 164.0
Injection Rate into Air cm3/s 219.0 275.0 260.6 327.3 305.9 384.1
Injection Stroke mm 276
Injection Speed cm/s 9.2/11.6
Screw Speed rpm 192/242
CLAMPING  UNIT Clamping Force KN 3000
Clamping Stroke mm 650

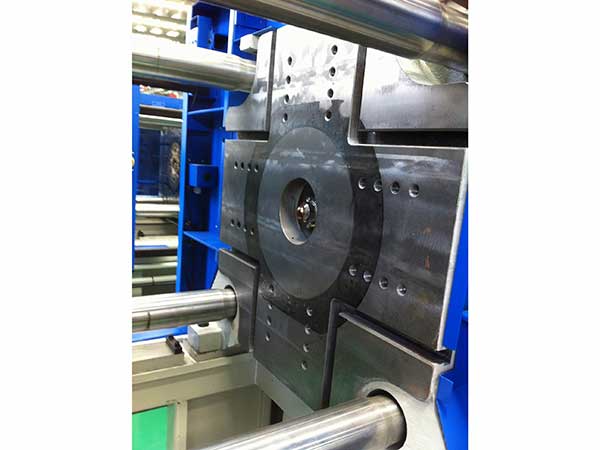

Space Between Tie Bar mm 630*630
Max. Mold Height mm 650
Min. Mold Height mm 250
Eject Stroke mm 160
Eject Force KN 67
No. Of Ejector Pins piece 13
OTHERS Max. Pump Pressure MPa 17.5
Pump Motor Power KW 30.0 33.5
Heater Power KW 19.3
Hopper Capacity Kg 50
Oil Tank Capacity L 700
Weight T 9.8
