Precise and energy saving injection molding machine 500Ton D500S
Send Inquiry


Precise and energy saving injection molding machine 500Ton
The pressure and flow differ in each stage of plastic injection. The RPM of the traditional oil pump motor is invariable, so the redundant oil just overflows into the oil and o lot of energy wasted.
Servo motor injection molding machine is able to control the RPM by computer, thus the hydraulic pressure matches the power needed in run, ensuring the quality of products with lower energy consumption.

UnitD500S
ITEMSABC
INECTION UNITScrew Diametermm758085
Screw L/D RatioL/D23.522.020.7
Shot Size(Theoretical)cm3178520312292
Injection Weightg162418482086
Injection PressureMPa216.5190.3168.6
Injection Rate into Aircm3/s383.9427.4436.8486.3493.1549
Injection Strokemm404
Injection Speedcm/s8.7/9.7
Screw Speedrpm157 /175
CLAMPING UNITClamping ForceKN5000
Clamping Strokemm840
Space Between Tie Barmm820*820
Max. Mold Heightmm800
Min. Mold Heightmm320
Eject Strokemm200
Eject ForceKN124
No. Of Ejector Pinspiece17
OTHERSMax. Pump PressureMPa17.5
Pump Motor PowerKW45.055.0
Heater PowerKW32.6
Hopper CapacityKg50
Oil Tank CapacityL900
WeightT20

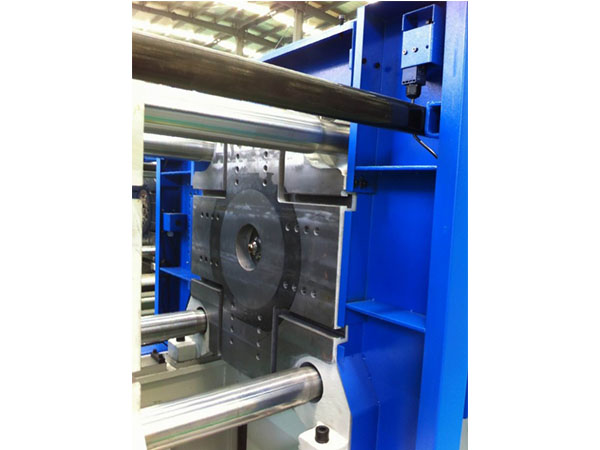

2. Mold platen drawing

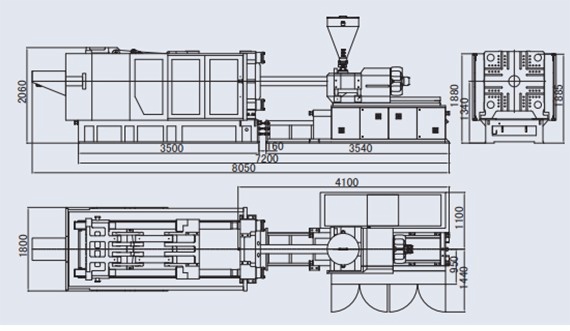

3.Machine size

precise and energy saving injection molding machine is the latest product. It is driven by servo motor, fit for production of precise products. Our machine has main advantages as following:


* Energy Saving
The pressure and flow differ in each stage of plastic injection. The RPM of the traditional oil pump motor is invariable, so the redundant oil just overflows into the oil and o lot of energy wasted.
Servo motor injection molding machine is able to control the RPM by computer, thus the hydraulic pressure matches the power needed in run, ensuring the quality of products with lower energy consumption.
High performance servo motor system, hydraulic components from world famous brand, saves power by 50-80%. Servo motor system with quick response, response time 30-50ms
* High efficiency
The efficiency of the traditional electromotor is very low, and the power factor will contribute to the loss of power. However, the servomotor doesn’t have this problem and will improve the efficiency by 10% than that of the traditional one.
* Precision
Fast response. It takes only 0.03 seconds for the pressure flow to go up. The machines have higher position accuracy (0.1mm) and repeatability than those of traditional machines.
*With super big tie bar space and clamping stroke, with super big eject stroke
*With big diagonal type clamping unit design, easy mould open and the clamping unit running fast and smooth
*Flexible front platen design, with little large-area anit-deformation.
*With faster heating, and more precise temperature control
*Two paralyzed pillar guider design, Injection is more stable& precise
*High-precision hydraulic oil filter system, oil temperature /level instant monitoring

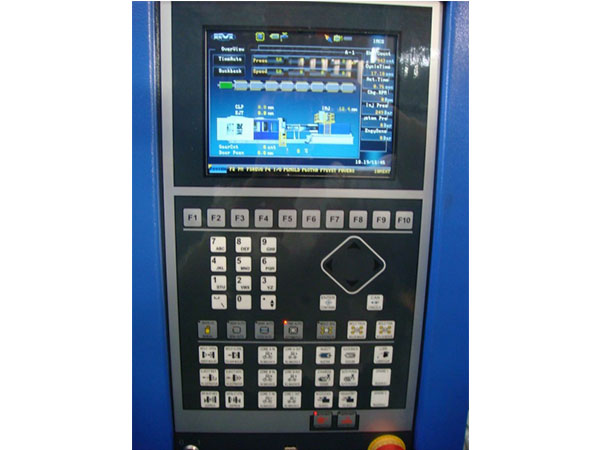

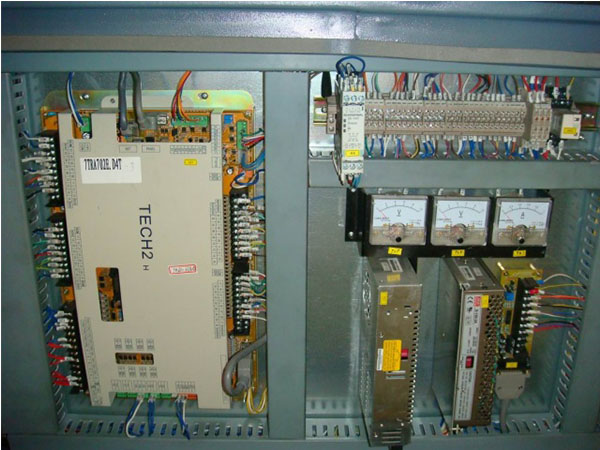

*Versatile controller with excellent QC monitoring function, temperature detecting function.

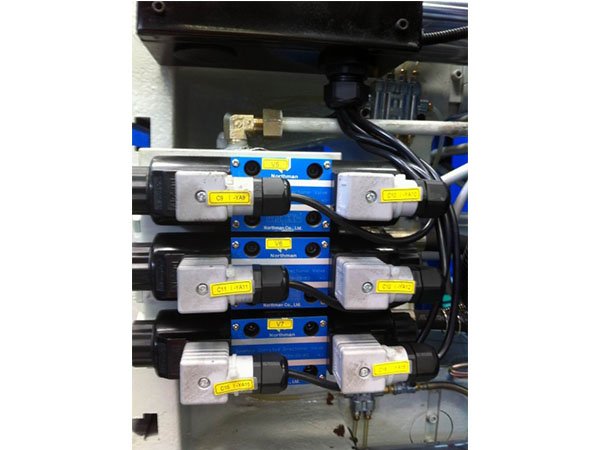

*Hydraulic routes with the fewest bents, welding and with the shortest route
