PVC Pipe Fitting Injection Machine

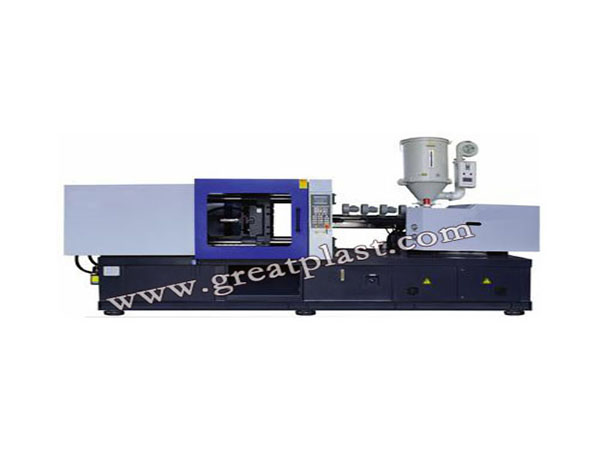

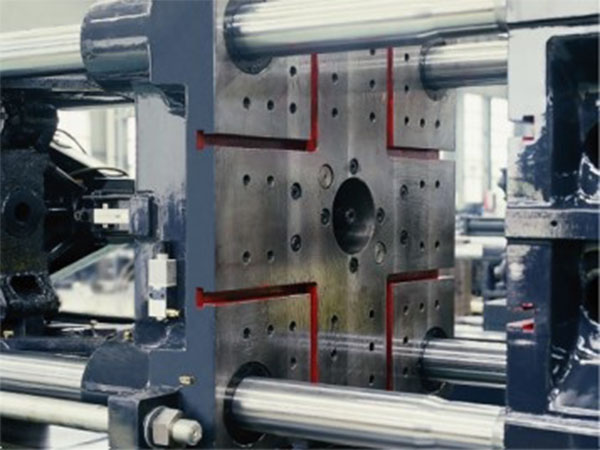

PVC Fitting Injection Molding Machine
Standard Features
We have designed PVC fitting injection machine that meet client strictly production requirements.
Wide safety doors are fit for the core pulling cylinder of fitting moulds.
Two groups core pulling devices, 2 in & out for each group
| Model | TR-280PVC | TR-320PVC | TR-400PVC | TR-500PVC | ||||||||||
| Unit | A | B | C | A | B | C | A | B | C | A | B | C | ||
| INJECTION UNIT | Screw Diameter | mm | 55 | 62 | 67 | 62 | 67 | 72 | 70 | 75 | 80 | 75 | 80 | 85 |
| Screw L/D Ratio | 22.5 | 20.0 | 18.5 | 22.7 | 21.0 | 19.5 | 21.4 | 20.0 | 18.8 | 23.5 | 22.0 | 20.7 | ||
| Shot Size(Theoretical) | cm3 | 651 | 827 | 966 | 827 | 966 | 1116 | 1385 | 1590 | 1809 | 1762 | 2005 | 2263 | |
| Injection Weight | g | 846 | 1075 | 1255 | 1075 | 1256 | 1450 | 1801 | 2067 | 2352 | 2291 | 2607 | 2942 | |
| Injection Rate Into Air | cm3/s | 153 | 195 | 227 | 275 | 321 | 371 | 341 | 391 | 445 | 382 | 434 | 490 | |
| Injection Rate Into Air（ACC） | cm3/s | 2189 | 1723 | 1475 | 1724 | 1476 | 1278 | 1748 | 1523 | 1339 | 1865 | 1639 | 1452 | |
| Injection Pressure | bar | 55 | 62 | 67 | 62 | 67 | 72 | 70 | 75 | 80 | 75 | 80 | 85 | |
| Injection Stroke | mm | 274 | 274 | 360 | 399 | |||||||||
| Screw Speed | rpm | 0-133 | 0-112 | 0-179 | 0-136 | |||||||||
| CLAMPING UNIT | Clamping Force | KN | 2800 | 3200 | 4000 | 5000 | ||||||||
| Clamping Stroke | mm | 550 | 610 | 700 | 770 | |||||||||
| Space Between Tie Bar | mm | 580×580 | 610×610 | 720×720 | 800×800 | |||||||||
| Max. Mold Height | mm | 600 | 650 | 730 | 800 | |||||||||
| Min. Mold Height | mm | 200 | 220 | 220 | 250 | |||||||||
| Eject Stroke | mm | 165 | 167 | 180 | 231 | |||||||||
| Eject Force | KN | 70 | 70 | 126 | 126 | |||||||||
| No. Of Ejector Pins | piece | 9 | 9 | 13 | 13 | |||||||||
| OTHERS | Max. Pump Pressure | MPa | 16 | 16 | 16 | 16 | ||||||||
| Pump Motor Power | KW | 22.0 | 30.0 | 37.0 | 45.0 | |||||||||
| Heater Power | KW | 13.0 | 15 | 16.2 | 19.8 | |||||||||
| Hopper Capacity | Kg | 50 | 50 | 100 | 100 | |||||||||
| Oil Tank Capacity | L | 500 | 520 | 720 | 900 | |||||||||
| Machine Dimension(L×W×H) | m | 6.2×1.7×2.36 | 7.0×1.6×2.45 | 7.46×1.62×2.45 | 8.42×1.78×2.6 | |||||||||
| Machine Weight | T | 9.0 | 12.0 | 15.0 | 20.3 | |||||||||
PVC Fitting Injection Molding Machine
Standard Features
We have designed PVC fitting injection machine that meet client strictly production requirements.
Wide safety doors are fit for the core pulling cylinder of fitting moulds.
Two groups core pulling devices, 2 in & out for each group

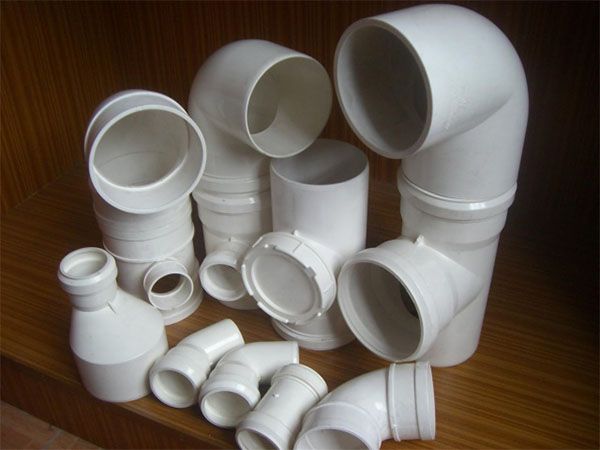

Hard chroming nozzle with bigger nozzle hole ensures high quality of products of PVC, UPVC
With corrosion resistance, hard chroming special screw for the PVC powders can plasticize PVC, UPVC powders evenly
Multi-stage air-cooling ensures exact temperature control necessary for PVC, UPVC which has narrow melt range

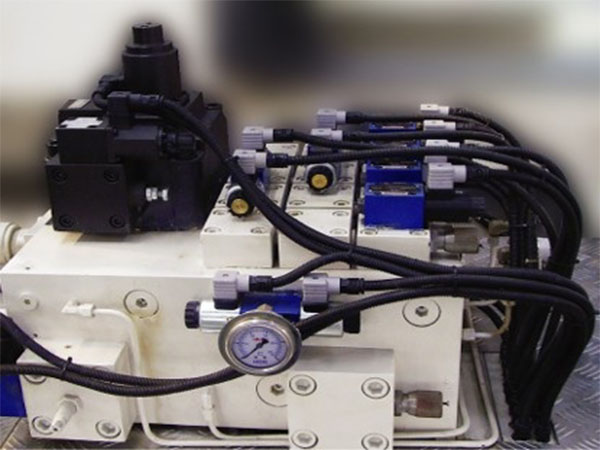

The increased hydraulic motor meets the requirements of high torque when PVC powers plasticized.
Driven by the servomotor or variable pump in order to save energy (Optional function)
